2020/08/31
How much temperature in a 10 ton 15 kg/㎡ oil fired boiler？I need 150 ℃ steam for the milk factory. How much pressure is appropriate?
Customers often ask questions about industrial boiler pressure and temperature. Today we will learn together, what is the relationship between steam boiler temperature and pressure.
First, it needs to be clear that the rated pressure in the steam boiler represents the highest temperature that can be reached.
Next, let's learn how much temperature different pressures represent. For example, the rated pressure is 1.0Mpa, which is 10bar, 10kg/㎡, which represents 184℃, which means that the maximum steam temperature can reach 184℃.

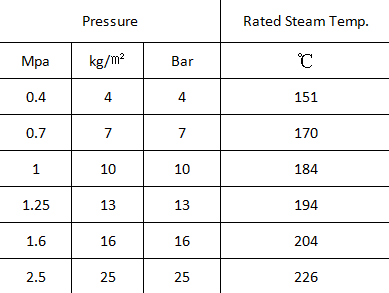

Below is a schematic diagram of different pressures representing different temperatures:
Then we can solve the initial question, the temperature of a 10 ton 15 kg/㎡ oil fired boiler can reach 204℃;
If the steam temperature required for production is 150 degrees Celsius, a pressure setting of 0.4 mpa is sufficient.
Reminder: Steam boiler is a pressure vessel, improper pressure operation will cause danger, please consult professionals.
