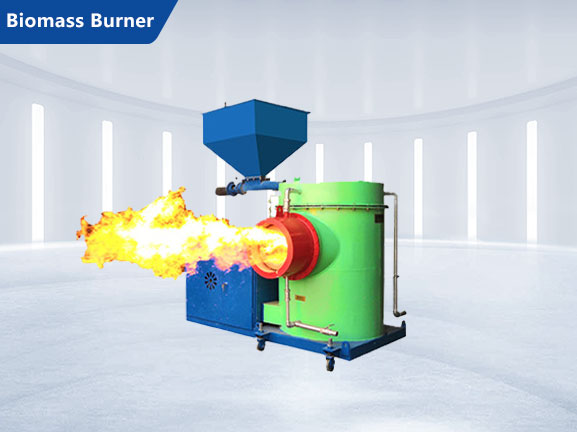

Introduction

Biomass burner is a specialized combustion device that efficiently converts biomass fuel into usable heat or energy. These fuels include wood chips, pellets, sawdust, sawdust, powder, agricultural residues (e.g., straw, corn stover)

Mostly used for industrial boilers, dryers, heat exchangers, drying chambers, coating lines, valve casting, paint drying, spray curing, food drying, furnace heating, aluminum processing, metal smelting, electroplating drying, etc.

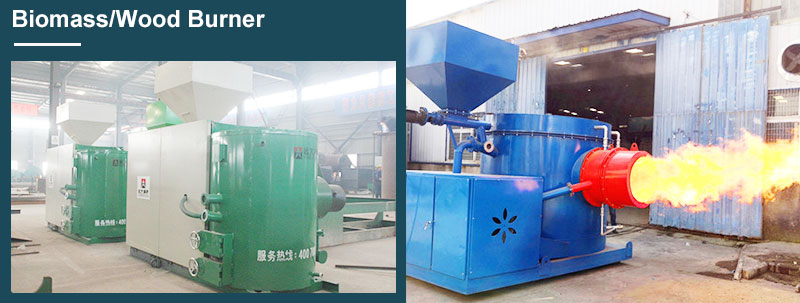

biomass burner, woodchips burner, sawdust burner

Biomass Burner Fuel

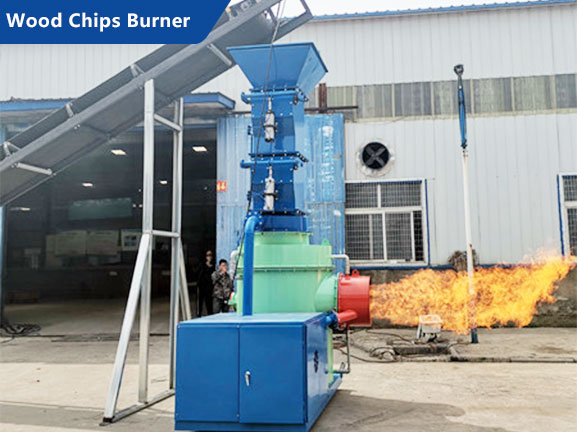

▲Wood Chip Burner: wood chips, building formwork, slag, waste wood

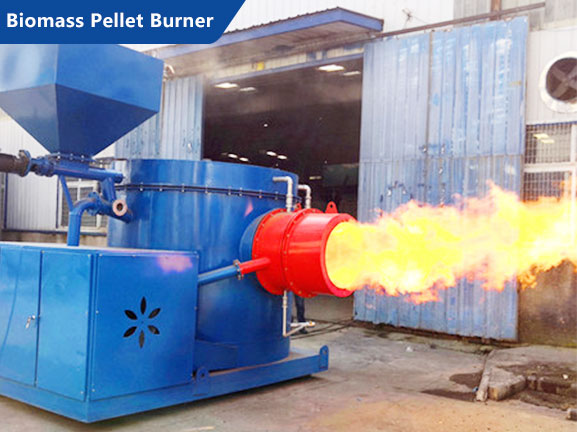

▲Biomass Pellet Burner: wood pellets, peanut husk pellets, rice husk pellets, nuts shells pellet

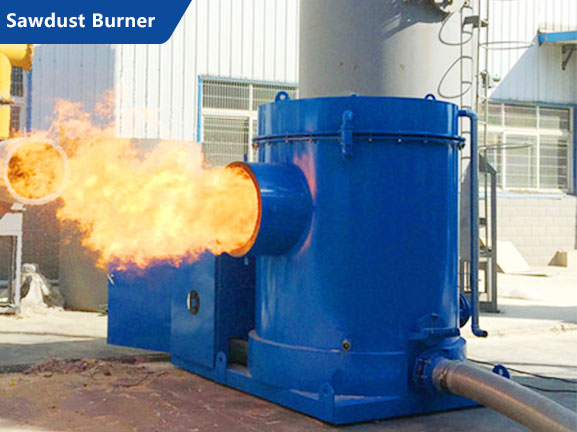

▲Sawdust Burner: sawdust, rice husk sawdust, peanut husk sawdust, mushroom residue sawdust

▲Wood Dust Burner: wood powder, sanding powder, bamboo dust powder, rice husk powder

suitable biomass fuel kind for biomass burner

Advantages

Green credentials: It minimizes carbon emissions, utilizes renewable fuels, and emits negligible nitrogen oxides and zero sulfur. This contributes to cleaner air and reduced greenhouse gas emissions.
Advanced combustion process: Employing gasification combustion, it features segmented, low-temperature furnace burning followed by secondary high-temperature combustion at the burner. This method enhances combustion efficiency and likely reduces pollutant formation.
Flexibility in fuel selection: Capable of utilizing diverse biomass fuels such as wood chips, blocks, briquettes, and pellets, it caters to various feedstock availability and user preferences.
Broad applicability: Suitable for a wide array of applications, including boilers, drying processes, hot blast kilns, annealing furnaces, incinerators, and aluminum bar furnaces, demonstrating its versatility across multiple industries.
Superior energy efficiency and cost savings: Demonstrating significant energy savings compared to conventional alternatives, with an estimated reduction of over 50%. When fueled with biomass pellets, it achieves an additional 30% energy savings, further enhancing its economic appeal and sustainability.

Our Company

■ Founded in 1956, a quality supplier assessed, certified and inspected by SGS Group
■ CE ASME DOSH EAC GOST TUV BUV ISO certificates
■ More than 17 years of export experience, gold medal supplier, payment and delivery guaranteed
■ Integrating research&development production and sales
■ Support video/VR or third party factory inspection
■ Best seller in 108 countries, more than 100,000 customers

Parameter

Biomass Pellet Burner

Model	Rated thermal power (10*4 kcal)	Rated voltage V	Input power KW	Fuel consumption Kg/h	Matching boiler T	Dimensions LWH	Outer diameter of burner (mm)	The height of the center of the crater (mm)
YD-LK1.0	60	380	3	150	1	195013502200	500	996
YD-LK2.0	120	380	7	300	2	250017102800	600	1290
YD-LK4.0	240	380	9.5	600	4	280019403050	700	1455
YD-LK6.0	360	380	11	900	6	300021803700	800	1650
YD-LK8.0	480	380	18.5	1200	8	310024403800	950	1685
YD-LK10.0	600	380	18.5	1500	10	325027003900	1000	1850
