hot water boiler for hotel| steam boiler for hotel| vertical boler for hotel
With 65 years experience, Yuanda Boiler is an expert in hotel boiler solutions. Hotels provide hot water to each guest room through hot water boiler/steam boiler, which are also used in larger hotels for restaurant cooking, and to maintain water temperature in swimming pools or water parks.
| Output: | hotwater, steam |
| Capacity Range: | 0.12mw-14mw, 120 to 14,000kw |
| Horsepower | 20hp to 2500hp |
| Layout | horizontal, vertical |
| Fuel type: | gas, lpg, diesel, hfo, electric etc |
Introduction
Founded in 1956, Yuanda Boiler is a prominent Chinese industrial boiler manufacturer with CE ASME EAC DOSH CRN GOST certificates.
With our expertise and dedication to excellence, boiler has exported to 132 countries, meet America, European standard.

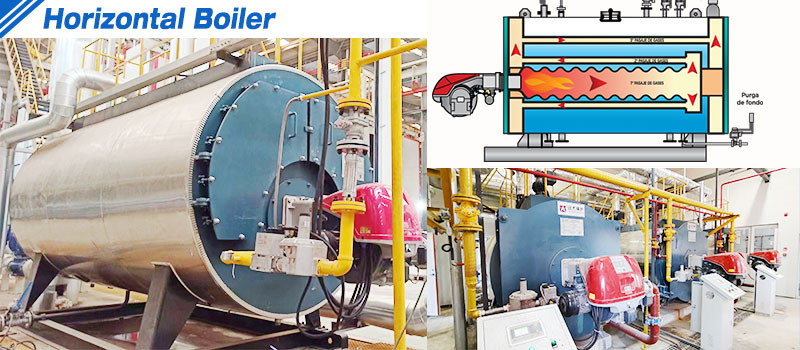

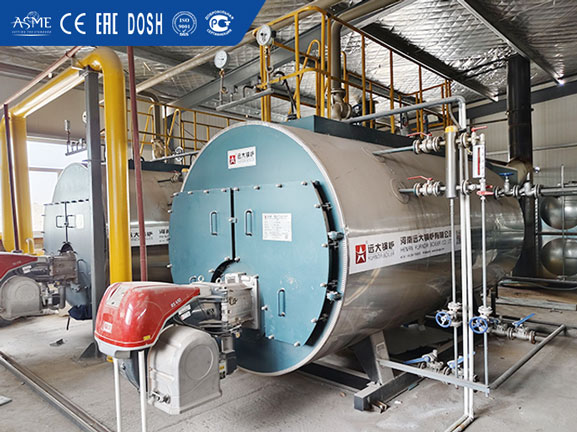

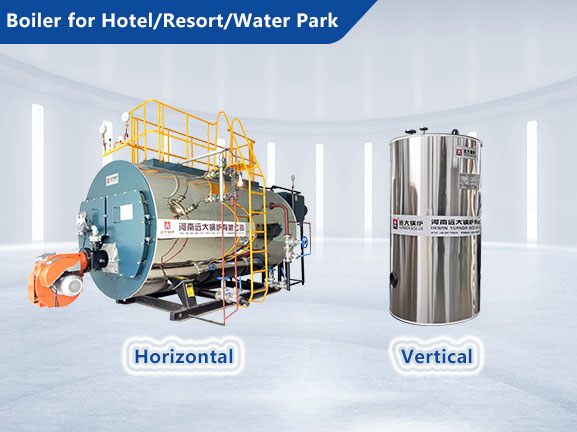

Most popular boiler for hotel, for resort, for water park is WNS LHS package hot water boiler, also known as fire tube boiler, shell tube boiler, gas or oil fueled boiler.
It is the 3 pass fire tube wet-back structure boiler, have larger corugated furnace and spirally smoke tube, 5-th inter-lock protection, equipped with international first-level brand burner & accessories. Automatic operation of the burner ignition, flameout, big/small fire switch. High-matching PLC control system and energy saving device to realize muitiple linkages, 99% high efficiency and energy saving.
Capacity in 0.35mw 0.7mw 1.4mw 2.1mw 2.8mw 3.5mw 4.2mw to 14mw. (same to 30-1500hp)

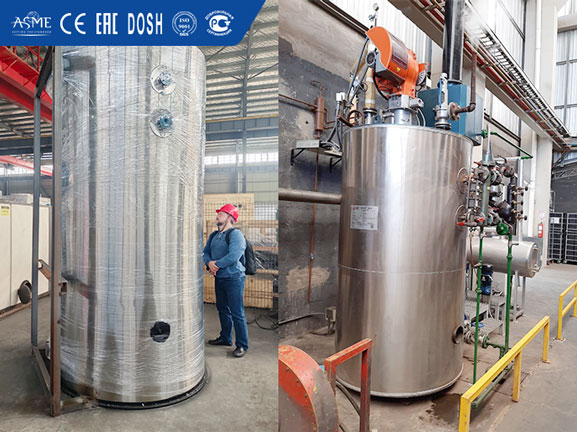

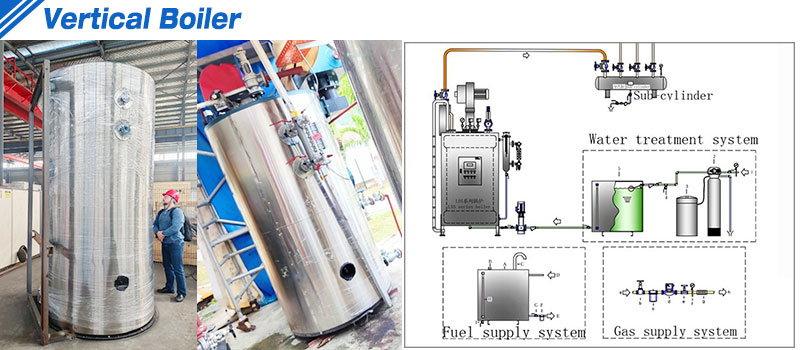

LHS boiler is a vertically designed hot water solution for hotel. With advantages of minimal space requirements, simple structure, easy to install and debug. Most cost effective boiler for hotel.
Capacity in 120kw 350kw 700kw 1050kw 1400kw. (same to 0-150hp)

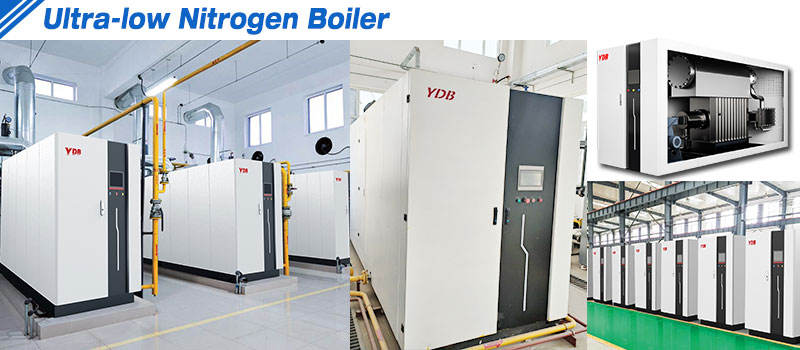

The YDB Ultra-Low Nitrogen Gas Hot Water Boiler is our patented, eco-friendly system designed for hotels/resort/club/residential area, featuring silent operation, low NOx emissions (<30mg), easy electronic adjustment, pre-shipping testing for quick installation, and customizable multi-circuit hot water supply, enhancing efficiency and user experience while reducing costs.
Capacity 0.35mw 0.7mw 1.05mw 1.4mw 2.1mw 2.8mw 3.5mw ... to 14mw.(same to 350kw-14000kw, 30hp-1500hp)
Pre-sale Service:
1. Design一We help customer to choose the best boiler model according to the different requirements of different industries.
2. Drawing and files一Supply quality certificates, factory-inspect, fuel consumption calculation, cost analysis, foundation drawings, layout drawings, boiler room drawings nased on your needs, etc.
3. Technical Solution一Design completed boiler solution with installation materials for your company.
4. Competitive Price一As one boiler factory, we have lowest price and high quality.
After-sale Service:
1. Provide a full range of boiler and original spare parts.
2. Overseas engineers installation and commissioning service is available.
3. Training in site, to ensure safe operation.
4. 24 hours online, quick respond.
5. Free maintenance and repair for one year and lifetime service.
About Our Company
■ Founded in 1956, a quality supplier assessed, certified and inspected by SGS Group
■ ASME CE DOSH EAC GOST TUV BUV ISO boiler certificates
■ More than 17 years of export experience, gold plus supplier, payment and delivery guaranteed
■ Integrating research&development production and sales
■ Support video/VR or third party factory inspection
■ Best seller in 108 countries, more than 100,000 customers
Choose Suitable Boiler for Hotel
1st to know: what fuel you plan to use: Lpg, natural gas, diesel, heavy oil, dual fuel or electric.
2nd to know: the heating power you need. If you don't know, please tell us How many rooms the hotel has? How many liters of hot water are needed per hour/minutes? If consider cooking, laundry or swimming pool？
3rd to know: the length, width and height of boiler room.
YUANDA Engineer will calculate and recommend the most suitable model for your hotel projects.
Parameter
| Model |
Rated heating capacity (mw) |
Rated working pressure (Mpa) |
Output water temperature (℃) |
Return water temperature (℃) |
Fuel consumption | |
| Light diesel oil(kg/h) | Natural gas(Nm3/h) | |||||
| WNS 0.35 | 0.35mw | Atmospheric pressure/0.7/1.0/1.25/1.6 | 85~130 ℃ | 70/60 ℃ | 31.6 | 36.6 |
| WNS 0.7 | 0.7mw | Atmospheric pressure/0.7/1.0/1.25/1.6 | 85~130 ℃ | 70/60 ℃ | 60.4 | 69.3 |
|
WNS 1.05 |
1.05mw |
Atmospheric pressure/0.7/1.0/1.25/1.6 |
85~130 ℃ |
70/60 ℃ |
100 | 112 |
| WNS 1.4 | 1.4mw | Atmospheric pressure/0.7/1.0/1.25/1.6 | 85~130 ℃ | 70/60 ℃ | 122.8 | 146.1 |
| WNS 2.1 | 2.1mw | Atmospheric pressure/0.7/1.0/1.25/1.6 | 85~130 ℃ | 70/60 ℃ | 192.3 | 227.1 |
| WNS 2.8 | 2.8mw | Atmospheric pressure/0.7/1.0/1.25/1.6 | 85~130 ℃ | 70/60 ℃ | 246.1 | 286.5 |
| WNS 4.2 | 4.2mw | Atmospheric pressure/0.7/1.0/1.25/1.6 | 85~130 ℃ | 70/60 ℃ | 367.1 | 412.6 |
| WNS 5.6 | 5.6mw | Atmospheric pressure/0.7/1.0/1.25/1.6 | 85~130 ℃ | 70/60 ℃ | 490.2 | 543.7 |
| WNS 7.0 | 7.0mw | Atmospheric pressure/0.7/1.0/1.25/1.6 | 85~130 ℃ | 70/60 ℃ | 593.6 | 660.7 |
| WNS 10.5 | 10.5mw | Atmospheric pressure/0.7/1.0/1.25/1.6 | 85~130 ℃ | 70/60 ℃ | 936.5 | 998.8 |
| WNS 14 | 14mw | Atmospheric pressure/0.7/1.0/1.25/1.6 | 85~130 ℃ | 70/60 ℃ | 1200.8 | 1330.7 |
| Note: for place limited, we didn't list all models, if you need other capacity, pressure, fuel, please send us inquiry directly, we will send you detailed parameter. | ||||||
| Model |
Rated thermal power (kw) |
Thermal efficiency (%) |
Rated output water temperature (℃) |
Rated return water temperature (℃) |
Fuel consumption | |
| Light diesel oil(kg/h) | Natural gas(Nm3/h) | |||||
| CLHS 0.12-85/65-Y(Q) | 120 | ＞91 | 85 | 65 | 10 | 12 |
| CLHS 0.35-85/65-Y(Q) | 350 | ＞91 | 85 | 65 | 32 | 38 |
| CLHS 0.5-85/65-Y(Q) | 500 | ＞91 | 85 | 65 | 45 | 54 |
| CLHS 0.6-85/65-Y(Q) | 600 | ＞91 | 85 | 65 | 56 | 68 |
| CLHS 0.7-85/65-Y(Q) | 700 | ＞91 | 85 | 65 | 65 | 79 |
| Note: Standard boiler parameter is for your reference, should follow the actual technical data according customer needs & engineer design. | ||||||
