Industrial electric boiler | Steam generator boiler | Hot water heater boiler
YUANDA BOILER, reliable manufactures and supplier of industrial electric boiler, electric heating boiler, electrical steam generator boiler, electrical hot water heater boiler, capacity range 9kw-7000kw, 13kg-10000kg.
| Capacity: | 12kg-10000kg, 9kw-7000kw |
| Work Pressure: | 3-25bar, 0.3-2.5Mpa |
| Heat Temperature: | 0-300℃ |
| Output: | Steam, Hot Water |
| Application: | Food, Beverage, Textile, Garment, Paper, Hotel, Dairy, Washing ironing, Pharm, Packaging, Labeling, Chemical, Coating, Concrete Curing, Sauna etc |
Introduction
1. Henan Yuanda Boiler Corporation Ltd., established in 1956.
Reliable and certified Class A manufacturer, supplier of electrical boiler, electric steam generator boiler and electric water heater boilers.
2. Passed ASME CE ISO EAC DOSH GB certification, boiler projects covered more than 132 countries.

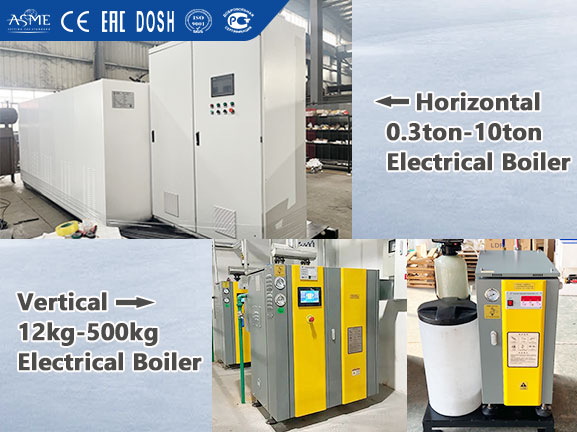

3. Horizontal, vertical and stainless steel electrical boiler for choice.
Noted: Customized voltage for user, provide whole accessories including water treatment, steam and blowdown systems, control system, valves instruments etc.

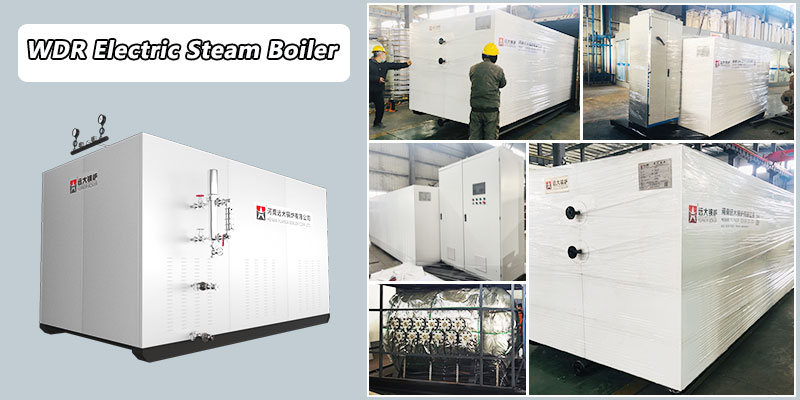

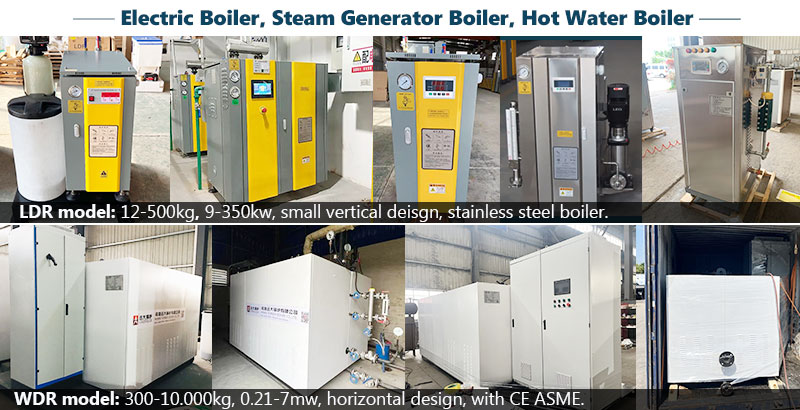

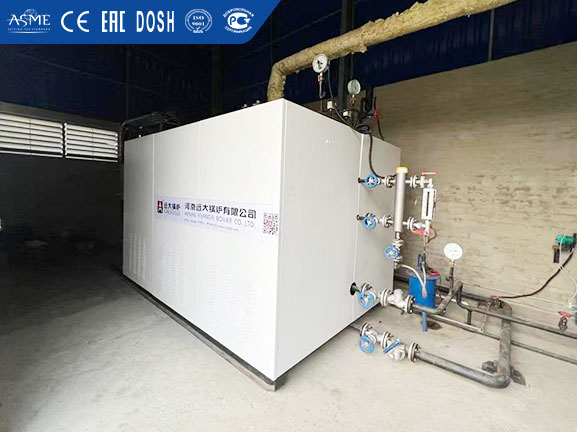

WDR Horizontal Electrical Boiler
It is favored by users for its 99.9% high thermal efficiency and environmental protection.
WDR electrical boiler adopts horizontal structure design, which can provide greater steam/water output capacity; Large furnace, high steam quality; no pollution, no noise, simple installation and operation; PLC automated operation and safety features like water level, pressure and temperature monitoring.

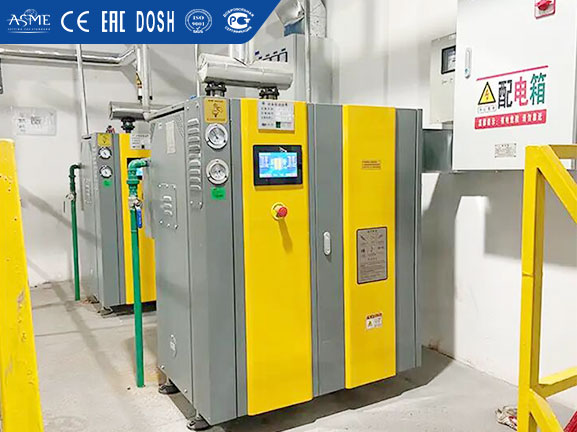

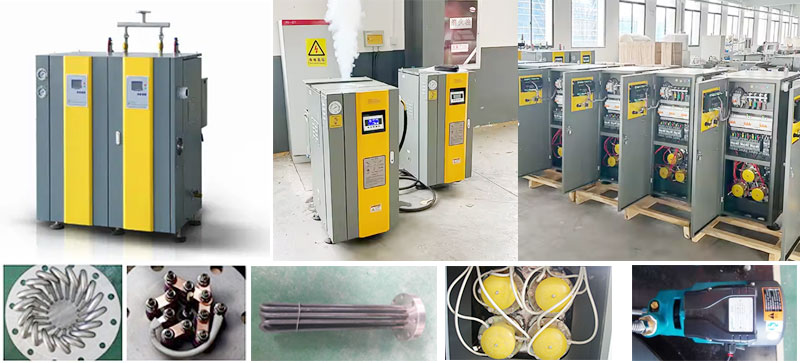

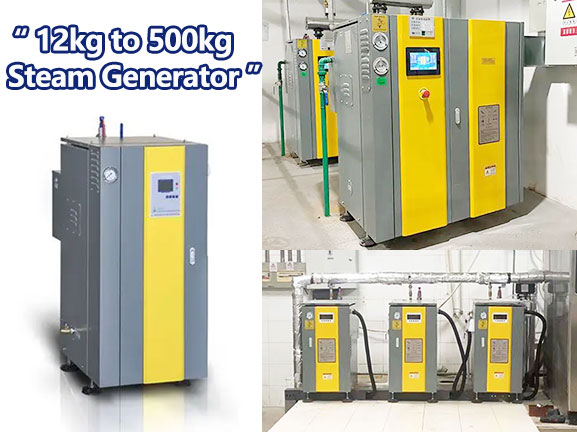

LDRVertical Electrical Boiler
LDR vertical electric boiler have smaller capacity (12-500kg,9-350kw), fast-heating type boiler. Can be used in parallel with multiple units.
It adopts integrated vertical structure, small in size, space-saving, occupies less area, and high flexibility; Simple structure, one-button to start, fast start and stop; 98% thermal efficiency.
Have stainless steel steam generator, food/pharm grade steam generator.
Advantages Electrical Boiler
99.9% High Thermal Efficiency
No matter horizontal or vertical electric boiler, thermal efficiency is as high as 99%;
Multi-layer insulation of aluminum silicate fiber blanket.High Quality and Long Service Life
Adopt well-known stainless steel electric heating tubes, high pressure resistance and long service life;

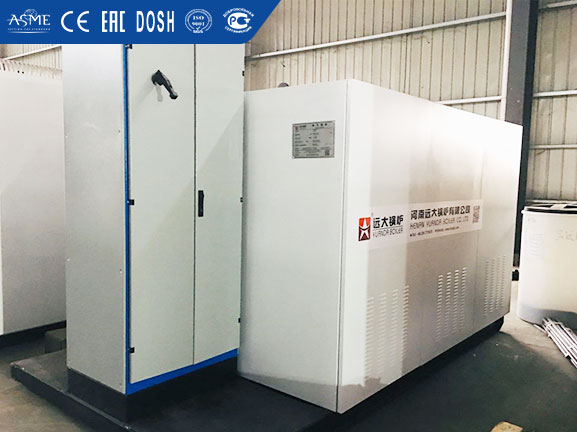

Boiler body, control cabinet is separated, avoid high temperature damage.
Easy to Install, Lower Installation Cost
Boiler body is compact design, occupies small area, no need to build separate boiler room;
No need to arrange fuel feeding system, flue, chimney, dust removal system etc.
Easy to Use, 100% Safe
PLC fully automatic control, LCD display, convenient operation;
Overpressure, overtemperature, low water level alarm function;
Power off protection function.
Environmental Protection
Powered by electricity, no gas, oil or solid fuel is required, zero emission, no pollution;
Compatible with renewable energy systems.
PS: It is a better boiler choice for users with cheap electricity prices.
Pre-sale Service:
1. Design一We help customer to choose the best boiler model according to the different requirements of different industries.
2. Drawing and files一Supply quality certificates, factory-inspect, fuel consumption calculation, cost analysis, foundation drawings, layout drawings, boiler room drawings nased on your needs, etc.
3. Technical Solution一Design completed boiler solution with installation materials for your company.
4. Transportation一We have shipping partners and forwarder for lowest price and safe.
After-sale Service:
1. Provide a full range of boiler and original spare parts.
2. Overseas engineers installation and commissioning service is available.
3. Training in site, to ensure safe operation.
4. 24 hours online, quick respond.
5. Free maintenance and repair for one year and lifetime service.
Quality Assurance
Electric Boiler FAQ
1. How much electricity does it use per hour?
Take 500kg electric boiler as an example, the consumption is arount 350kw/h. The power consumption of water pump is very small and can be ignored.
2. Worried about the installation?
It is very easy to use electric boiler, only connect water, electricity.
3. Do you have 50kg electric boiler?
Yes, we have electric boiler min. capacity 13kg/h.
4. Electrode type or resistive type?
Our boiler is resistance boiler.
5. Do you have agent here?
No, we prefer factory-direct to protect our quality and service. We have partner in some countries.
Parameter
| Model | Rated capacity(kg) |
Input power (kw) |
Rated pressure（Mpa) | Steam temperature(℃） | Thermal efficiency(%) |
| LDR0.013-0.7 | 13 | 9 | 0.7 | 171 | 99.9 |
| LDR0.017-0.7 | 17 | 12 | 0.7 | 171 | 99.9 |
| LDR0.025-0.7 | 25 | 18 | 0.7 | 171 | 99.9 |
| LDR0.035-0.7 | 35 | 24 | 0.7 | 171 | 99.9 |
| LDR0.05-0.7 | 50 | 36 | 0.7 | 171 | 99.9 |
| LDR0.065-0.7 | 65 | 48 | 0.7 | 171 | 99.9 |
| LDR0.075-0.7 | 75 | 54 | 0.7 | 171 | 99.9 |
| LDR0.085-0.7 | 85 | 60 | 0.7 | 171 | 99.9 |
| LDR0.1-0.7 | 100 | 72 | 0.7 | 171 | 99.9 |
| LDR0.11-0.7 | 110 | 80 | 0.7 | 171 | 99.9 |
| LDR0.125-0.7 | 125 | 90 | 0.7 | 171 | 99.9 |
| LDR0.15-0.8 | 150 | 108 | 0.8 | 175 | 99.9 |
| LDR0.18-0.8 | 180 | 126 | 0.8 | 175 | 99.9 |
| LDR0.2-0.8 | 200 | 144 | 0.8 | 175 | 99.9 |
| LDR0.25-0.8 | 250 | 180 | 0.8 | 175 | 99.9 |
| LDR0.3-0.8 | 300 | 216 | 0.8 | 175 | 99.9 |
| LDR0.4-0.8 | 400 | 288 | 0.8 | 175 | 99.9 |
| LDR0.5-0.8 | 500 | 360 | 0.8 | 175 | 99.9 |
| WDR0.5-1.0 | 500 | 360 | 1 | 184 | 98 |
| WDR1.0-1.0 | 1000 | 700 | 1 | 184 | 98 |
| WDR2-1.0 | 2000 | 1400 | 1 | 184 | 98 |
| WDR3-1.25 | 3000 | 2100 | 1.25 | 194 | 98 |
| WDR4-1.25 | 4000 | 2800 | 1.25 | 194 | 98 |
| WDR5-1.25 | 5000 | 3500 | 1.25 | 194 | 98 |
| ....... | |||||
| WDR10-1.25 | 10000 | 7000 | 1.25 | 194 | 98 |
