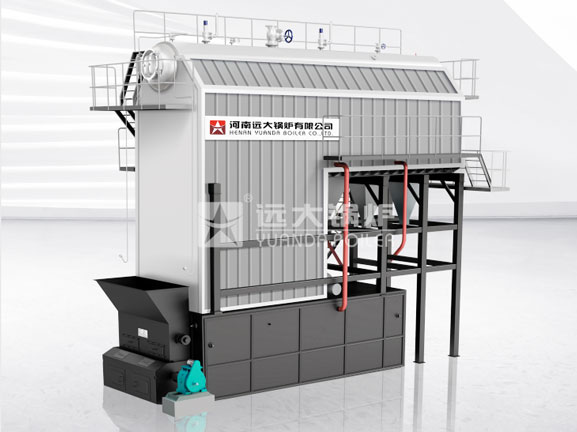

chain grate biomass boiler | reciprocating grate boiler | moving grate biomass boiler
Yuanda new generation biomass boiler is specially designed for biomass fuel. According to the combustion characteristics and component analysis of different fuel, adopting a reasonable feeding method, appropriate furnace and arch design, and targeted soot blowing/ash-cleaning measures.
Output: | steam(saturated/superheated), hot water |
Capacity: | 2-50 ton/h |
Pressure: | 4-40 Bar |
Available Fuel: | coal, biomass fuels, woodchips, palm fiber waste, bagasse, sawdust, husk, shells, furfural residues |
Applied Industries: | Heating/Drying/Steam Turbine, in food, beverage, paper, chemical, textile, feed, chemical, pharmaceutical etc |
Introduction
Yuanda new generation biomass boiler is specially designed for biomass fuel.
According to the combustion characteristics and component analysis of different fuel, adopting a reasonable feeding method, appropriate furnace and arch design, and targeted soot blowing/ash-cleaning measures.
Through staged air distribution and staged combustion, the following goals can be achieved:
· Capacity range 4 – 60 ton, pressure up to 40 bar
· Full membrane wall furnace
· Saturated / Superheated steam (up to 450˚C)
· Fuel’s with high moisture up to 55 – 60% can be fired
· Chain grate, reciprocating grate
· Resistance in high temp and low wear & tear
· Multiple biomass fuel are available
① Unique furnace design, 15% bigger furnace combustion, the heated area increases along.
② Membrane type furnace wall, not easy to collapse, good airtightness, no deformation, no dust falling
③ Best wind adjust design, segmented air supply; Increase secondary air, reduce primary air ratio, reduce fuel burning rate on grate, and prevent coking
④ Secondary cyclone burnout chamber, reduce fuel cost, save running cost, improve boiler thermal efficiency
⑤ Built-in ash removal device inside boiler and cleaning door, effectively cleaning ash

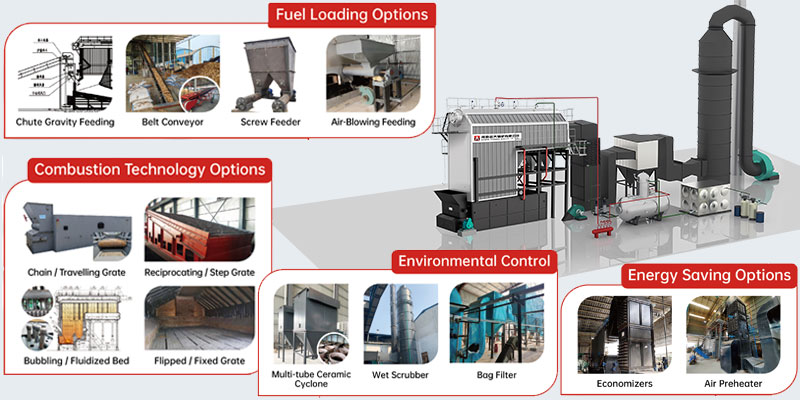

⑥ Equipped energy-saving device like economizer/preheater/cyclon/wet scrubber, environmental protection and energy conservation
⑦ Recommended suitable grate type materials, and feeding way, according the fuel features.
Fuel options: Natural gas, LPG, diesel, fuel oil, dual fuel, biogas, electricity, coal, charcoal, wood, biomass, pellets, palm kernel shells, rice hulls, olive shell, peanut shells, cashew nut shells, sunflower seed shells, sugarcane bagasse, etc.
Heating capacity options: 100–50,000 kg, 70–35,000 kW, 5HP–3,000 HP (million BTU, lbs/lbs, liters, etc.)
Heating medium options: saturated/superheated steam, hot water, hot oil.
Design options: Fire tube boiler, water tube boiler, water-fire tube boiler.
Layout options: Vertical boiler, horizontal boiler.
Operation mode options: Automatic, manual.
NOTE: Please feel free to send all your inquiries, we can help you better.
2. Calculate running costs
Specific consumption analysis report
Comparative analysis of the running cost of different boiler types.
(Note: The reports are based on local fuel prices)
3. Boiler accessories (mandatory or optional)
Control panel, water treatment device, economizer, condenser, heat recovery device, deaerator, solid fuel combustion furnace (chain grate, reciprocating grate, moving grate, fixed grate), steam distributors, pumps, water level indicators/sensors, pressure gauges/sensors, safety valves, etc.
Note: If you have special requirements, please send all information.
About Yuanda Boiler
■ Established in 1956, as a stated owned enterprise.
■ Over 16 years export experiences, payment & shipping protection
■ CE ASME DOSH EAC GOST ISO high standard boiler certified
■ Production of various types boilers, provide pre-sale boiler proposal for customer select
■ Directly factory low price & quality protection.
■ Completed technology & after-sale service team.
■ Support Video / VR factory-inspection. Abroad installation and commissing service etc
■ Technical discussion, drawing about boiler solution for your company use
Our Service
Pre-sale Service:
1. Design一We help customer to choose the best boiler model according to the different requirements of different industries.
2. Drawing and files一Supply quality certificates, factory-inspect, fuel consumption calculation, cost analysis, foundation drawings, layout drawings, boiler room drawings nased on your needs, etc.
3. Technical Solution一Design completed boiler solution with installation materials for your company.
4. Competitive Price一As one boiler factory, we have lowest price and high quality.
After-sale Service:
1. Provide a full range of boiler and original spare parts.
2. Overseas engineers installation and commissioning service is available.
3. Training in site, to ensure safe operation.
4. 24 hours online, quick respond.
5. Free maintenance and repair for one year and lifetime service.
Parameter
Boiler model | Rated capacity | Rated | Rated steam temp. | Feed water temp. | Exhaust gas temp. | Design effiency | Boiler water volume | Weight | Dimension | Delivery mode |
pressure | ||||||||||
ton/h | Mpa | ºC | m2 | ºC | % | m3 | ton | mm | ||
SZL2 | 2 |
1.25/1.6/1.8/ 2.5/3.82 |
194/204/ 226/300/350/450 |
20/105 | 130.67 | 83.13 | 6.76 | 22 | 5900×2850×3460 | Package |
SZL4 | 4 | 142 | 84.23 | 5.1 | 29 | 6460×3280×3462 | Package | |||
SZL6 | 6 | 142 | 84.81 | 8.4 | 34 | 7830×3560×3462 | Package | |||
SZL8 | 8 | 149.15 | 85.02 | 9.4 | 40.5 | 8870×3670×3462 | Package | |||
SZL10 | 10 | 152.7 | 86.2 | 8.35 | 24 | 7645×3180×3526 | Assembly | |||
SZL12 | 12 | 148.7 | 86.56 | 12.8 | 37 | 9258×3294×3524 | Assembly | |||
SZL15 | 15 | 149.86 | 86.29 | 15.5 | 24.7 | 11010×3300×2200 | Assembly | |||
SZL20 | 20 | 147.4 | 86.8 | 15.8 | 25.97 | 16680×6200×8420 | Assembly | |||
SZL25 | 25 | 149.6 | 86.4 | 16.5 | 28 | 8300×3000×3600 | Semi-Assembly | |||
SZL30 | 30 | 148.6 | 86.8 | 16.8 | 29 | 8500×3600×3640 | Semi-Assembly | |||
Notice: For place limited, we didnot list all models. Please contact us directly for get specifics. |
||||||||||

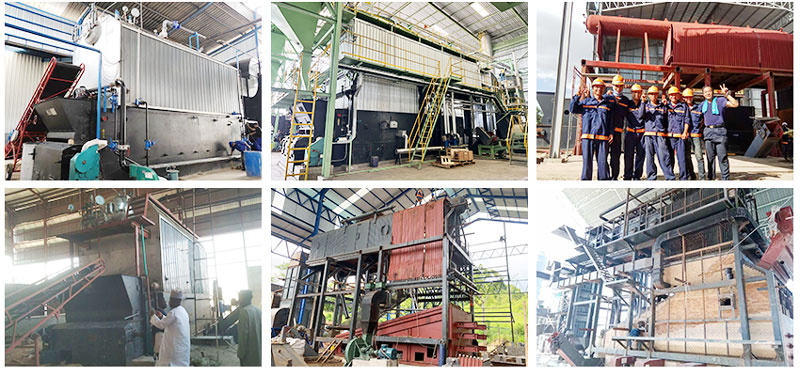

Relate Cases
