Small steam boiler | Small hot water boiler
Small steam boiler capacity 10kg - 2000kg, small hot water boiler from 9kw - 1400kw. Small gas boiler, small diesel boiler, small coal boiler, small biomass boiler, small wood boiler, small electric boiler.
| Transfer medium: | saturated steam, hot water |
| Thermal Capacity: | 10-2,000 kg/hr 9-1,400kw/h |
| Horsepower | 6hp to 150hp |
| Fuel: | oil, gas, coal, wood, biomass, electricity |
| Applied Industries: | food, beverage, diaries, garment, pharm, feed mill, paper, chemical, slaughterhouse, laundry, hotel, greenhouse, etc |
Introduction

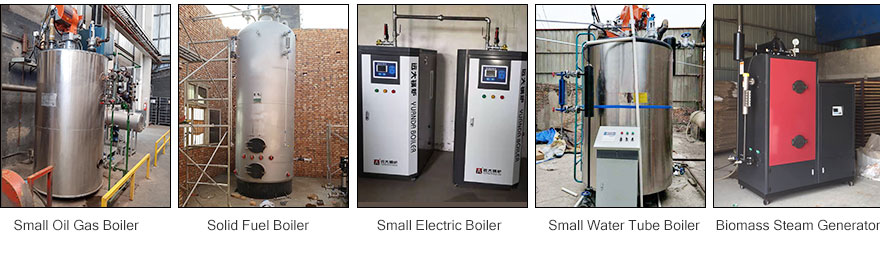

Small steam boiler is used to produce saturated steam for heating/drying/sterilization/cleaning purpose etc. We have 4 kind small boilers powered by different fuel:

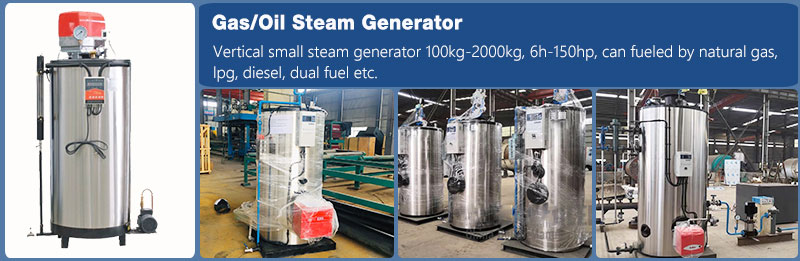

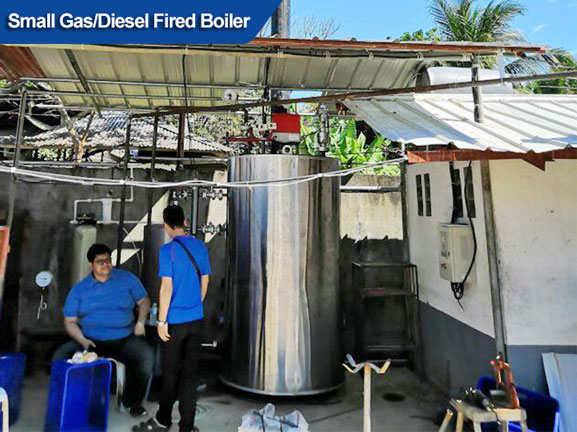

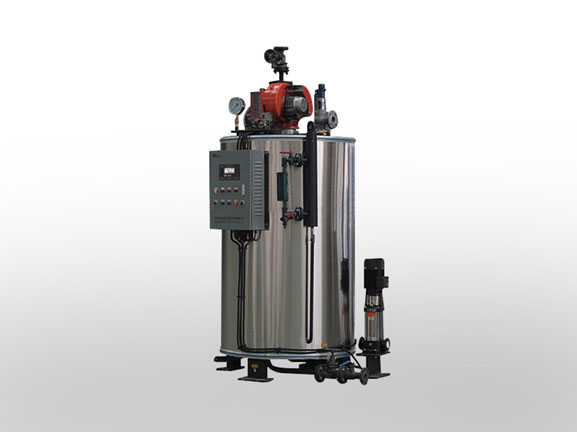

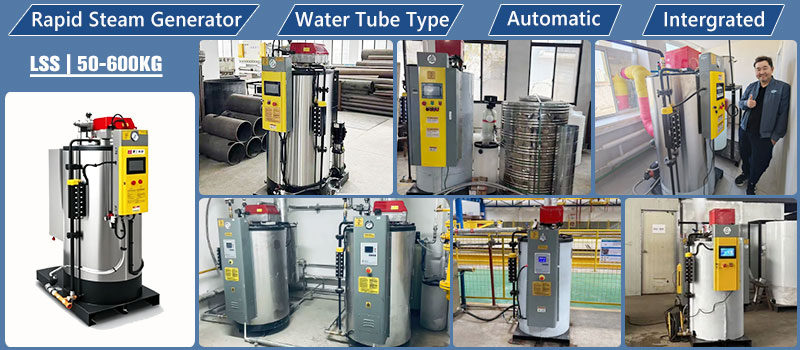

① Small gas/diesel oil fired boiler (automatic)

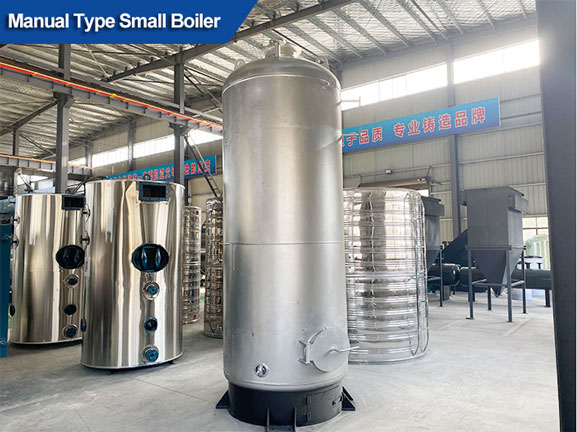

② Small coal/wood boiler (hand-feeding)
③ Small biomass boiler (automatic)

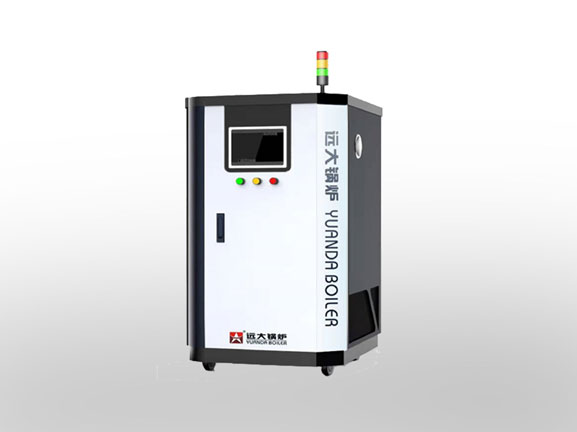

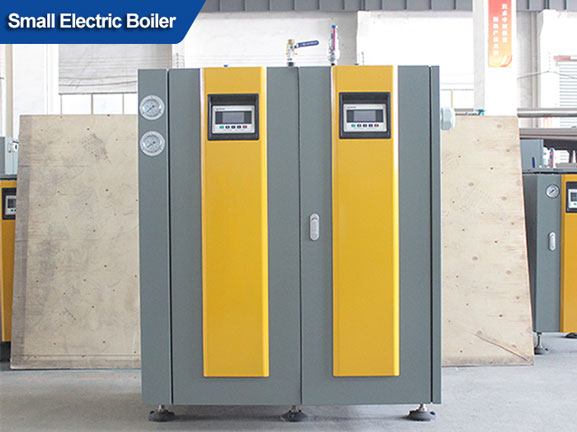

④ Small electric boiler (automatic)

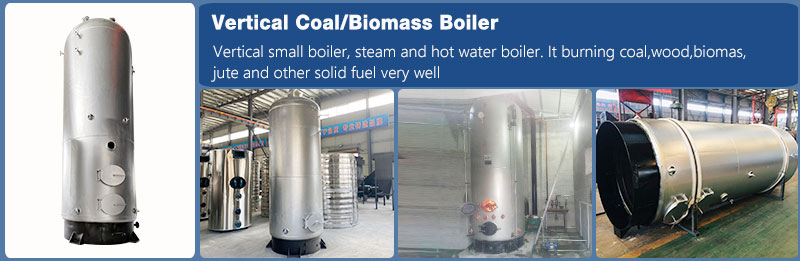

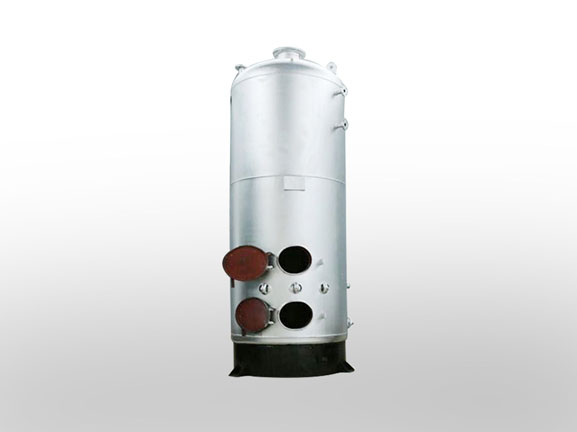

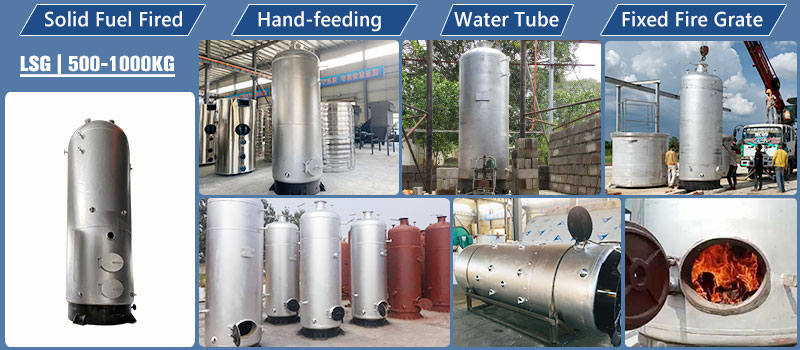

LSG model coal/biomass/wood/waste jute fired boiler. It need labor to feed fuel, low cost, less mechanical failure.

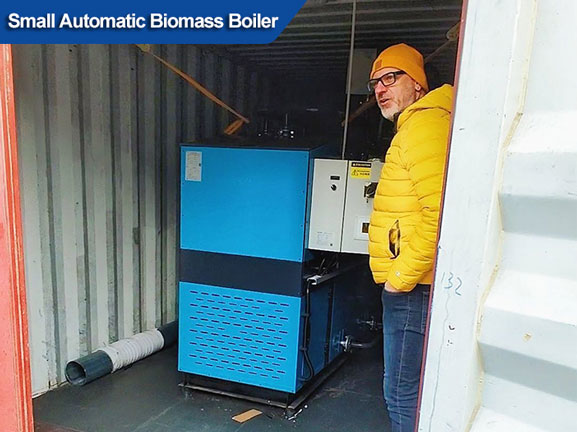

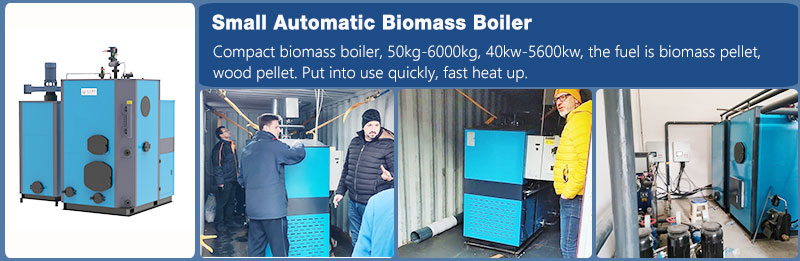

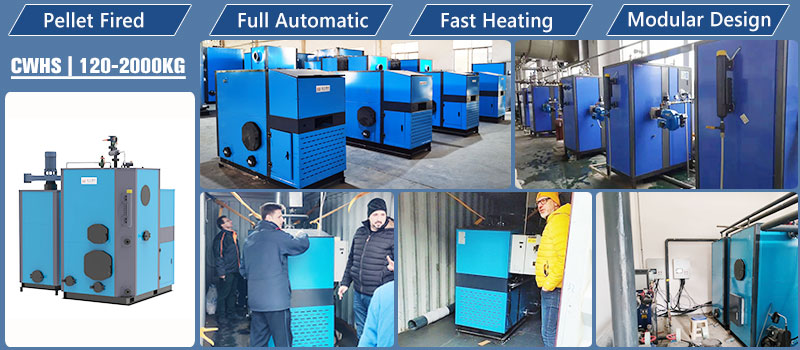

CWHS Small biomass/wood pellet boiler, automatic feeding, compact structure. Can provide steam and hot water at the same time.
■ Best seller in 108 countries, more than 100,000 customers
Quality Assurance
Steel element test→Steel rust cleaning→Welding electrodes drying process→Automatic welding, argon arc welding, expansion welding etc. methods→NDT(Nondestructive Testing) including X-ray Test, Ultrasonic Test, Magnetic particle Test→Hydraulic pressure test.
Service
Parameter

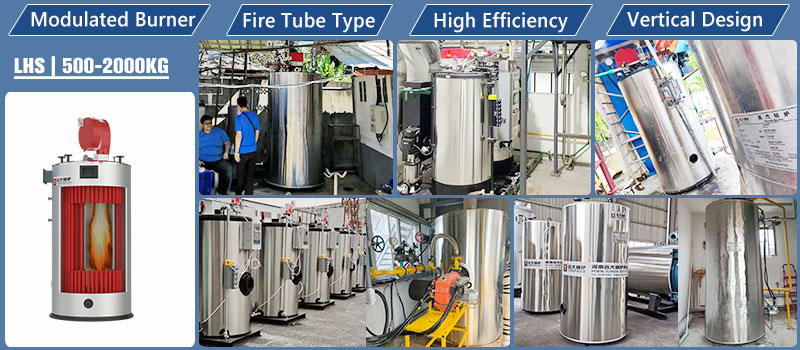

| Boiler Model | LHS0.1 | LHS0.2 | LHS0.3 | LHS0.5 | LHS0.7 | LHS1 | |
| Rated steam capacity(t/h) | 0.1 | 0.2 | 0.3 | 0.5 | 0.7 | 1 | |
| Horsepower | 7hp | 15hp | 20hp | 35hp | 50hp | 70hp | |
| Rated steam pressure(Mpa) | 0.4 | 0.4 | 0.4 | 0.4/0.7 | 0.4/0.7 | 0.4/0.7 | |
| Rated steam temperature(ºC) | 151 | 151 | 151 | 151(170) | 151(170) | 151(170) | |
|
Fuel consumption (Nm3/h) |
natural gas | 8.5 | 17 | 25.5 | 42.5 | 56 | 70.3 |
| diesel | 6.4 | 12.8 | 19.2 | 32 | 49.5 | 64.6 | |
| lpg | 3.1 | 6.2 | 9.3 | 15.5 | 22 | 28 | |
| Note: Standard boiler parameter is for your reference, should follow the actual technical data according customer needs & engineer design. | |||||||

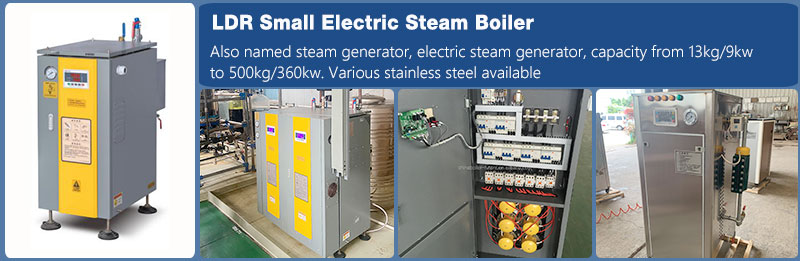

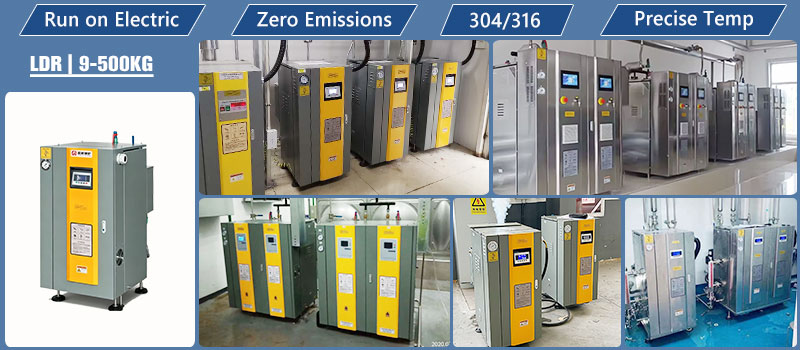

| Model | Rated capacity(kg) |
Input power (kw) |
Rated pressure（Mpa) | Steam temperature(℃） | Thermal efficiency(%) |
| LDR0.013-0.7 | 13 | 9 | 0.7 | 171 | 99.9 |
| LDR0.017-0.7 | 17 | 12 | 0.7 | 171 | 99.9 |
| LDR0.025-0.7 | 25 | 18 | 0.7 | 171 | 99.9 |
| LDR0.035-0.7 | 35 | 24 | 0.7 | 171 | 99.9 |
| LDR0.05-0.7 | 50 | 36 | 0.7 | 171 | 99.9 |
| LDR0.065-0.7 | 65 | 48 | 0.7 | 171 | 99.9 |
| LDR0.075-0.7 | 75 | 54 | 0.7 | 171 | 99.9 |
| LDR0.085-0.7 | 85 | 60 | 0.7 | 171 | 99.9 |
| LDR0.1-0.7 | 100 | 72 | 0.7 | 171 | 99.9 |
| LDR0.11-0.7 | 110 | 80 | 0.7 | 171 | 99.9 |
| LDR0.125-0.7 | 125 | 90 | 0.7 | 171 | 99.9 |
| LDR0.15-0.8 | 150 | 108 | 0.8 | 175 | 99.9 |
| LDR0.18-0.8 | 180 | 126 | 0.8 | 175 | 99.9 |
| LDR0.2-0.8 | 200 | 144 | 0.8 | 175 | 99.9 |
| LDR0.25-0.8 | 250 | 180 | 0.8 | 175 | 99.9 |
| LDR0.3-0.8 | 300 | 216 | 0.8 | 175 | 99.9 |
| LDR0.4-0.8 | 400 | 288 | 0.8 | 175 | 99.9 |
| LDR0.5-0.8 | 500 | 360 | 0.8 | 175 | 99.9 |
| WDR0.5-1.0 | 500 | 360 | 1 | 184 | 98 |
| WDR1.0-1.0 | 1000 | 700 | 1 | 184 | 98 |
| WDR2-1.0 | 2000 | 1400 | 1 | 184 | 98 |
| WDR3-1.25 | 3000 | 2100 | 1.25 | 194 | 98 |
| WDR4-1.25 | 4000 | 2800 | 1.25 | 194 | 98 |
| WDR5-1.25 | 5000 | 3500 | 1.25 | 194 | 98 |
| ....... | |||||
| WDR10-1.25 | 10000 | 7000 | 1.25 | 194 | 98 |
